Fiberline Laser

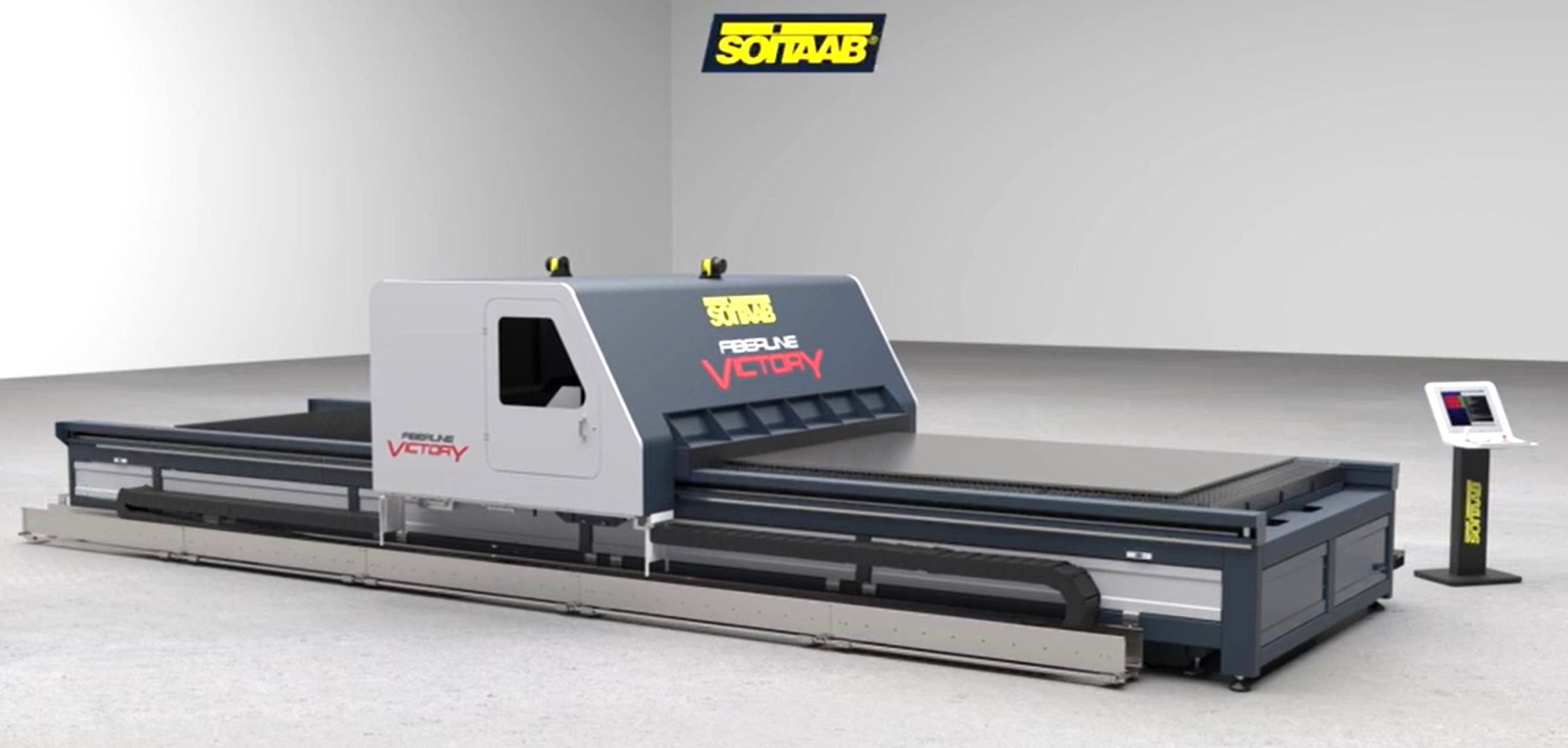

About Fiberline PRO, RED, & Nova and All New Fiberline Victory

Soitaab’s new range of fiber laser machines offers the best technology for versatility, accuracy, and high-performance cutting. Yield high productivity and improved reliability on a variety of materials and thicknesses. Featuring Fiber Lasers from 6kW up to 30kW with standard cutting areas from 5′ x 10′ up to 10′ x 80′ and larger.

Achieve the highest level of cutting quality with simple and complete process control through our effcient and intuitive parameter-driven CNC interface. FiberlineS offers a wide range of work areas with the highest operating speeds.

Rapid Positioning Speed:

  • Velocity X axis – 4140”
  • Velocity Y Axis – 4740”
  • Velocity Z axis – 2400”
DOWNLOAD SPECS

Main Features

  • Laser cutting head equipped with capacitive sensor
  • Motorized focal lens (+10 /-30)
  • Nozzle cooling system
  • Cross jet for quick piercing
  • Air-Tight Dust protection system built into optics
  • Drawer containing the protected lens for a quick replacement of optics
  • Collimator lengths from 65 to100
  • Focusing lengths from 150 to 210
  • Vertical Cutting (2d), or Bevel Cutting up to+/-45°
  • Working Area (x)
  • from 4.000 to 12.000 mm
  • Working area (y)
  • 2.000 , 2.500, 3.000 mm
  • Working area (z)
  • 115mm
  • Max Speed
  • 220 m/min
  • Acceleration
  • 1 g Y 3.000 | 1,3gY2500 | 1,7 g Y 2.000
  • Fiber laser power
  • 6-30 kw
  • Cutting Thickness (Carbon Steel)
  • 1 to 45 mm
  • Cutting Thickness (Stainless Steel)
  • 1 to 45 mm
  • Cutting Thickness (Aluminum)
  • 1 to 45 mm
  • Cutting Thickness (Copper)
  • 1 to 20mm
  • Cutting Thickness (Brass)
  • 1 to 20mm
